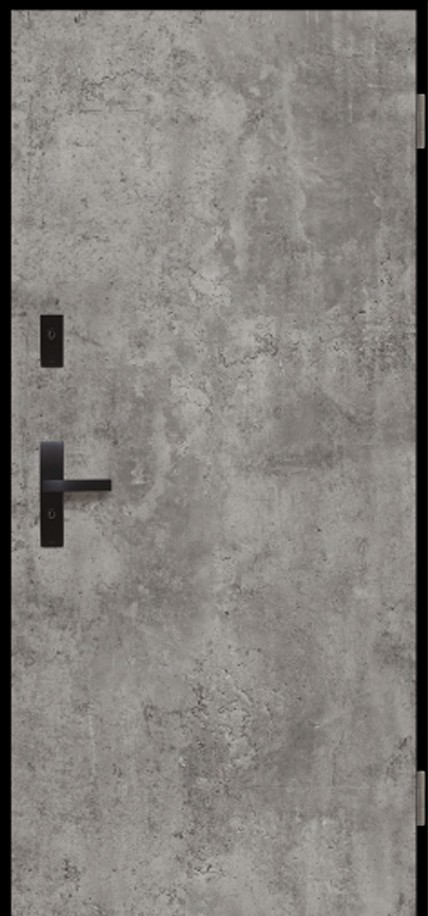

RC4 EI30

CONSTRUCTION OF THE WING:

• Interior entrance door are designed as closures for interior passages between a staircase or a corridor and rooms. Opened inwards and
  outwards.
• Special POL-SKONE structure based on a solid wood rail and stile set reinforced with plywood. The in-fill is a set of chipboards reinforced
  with steel bars. Door leaf thickness 50 mm. Fixed metal door frame made of 1.5 mm thick DC01 sheet metal, stainless steel 1.5 mm thick threshold.

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):

• strip type lock with a five-point locking bolt system
• adjustable angle 3D hinges – 2 pcs
• security bolts - 5 pcs
• Toronto handle and rose by Axa - silver colour
• complete set of class 6 cylinders

DOOR FRAMES:

• rebated SYSTEM: fixed metal door frame

ADDITIONAL (available at an extra charge):

• CPL 0.5 mm, 0.7 mm laminate
• fixed metal RC4 door frame, sheet metal DC01, thickness: 1.5 mm
• stainless steel 1.5 mm thick threshold
• panoramic viewer
• TORONTO handle colour change to black
• TORONTO upper rose colour change to black
• class 6 cylinder colour change to black
• edges in other colours are available - upon consultation with the Sales Department

DIMENSIONS:

• Doors with a metal door frame: 904x2066 mm, 1004x2066 mm, 1104x2066 mm
• 90 Plus version (allowing to get the clear opening of min. 900 mm when the door leaf is opened at an angle of 90°): 1024x2066 mm
  Doors with non-standard heights are available
• maximum size 1104x2166 mm

ADDITIONAL INFORMATION:

• burglary resistance:
  class RC3 according to PN-EN 1627:2012, class C according to PN-B-92270:1990
• acoustic insulation: Rw= 37 dB, D1-35, D2-30
• mechanical strength: classс 4 according to PN-EN 1192:2001
• mechanical durability: class 5 according to PN-EN 12400:2004
