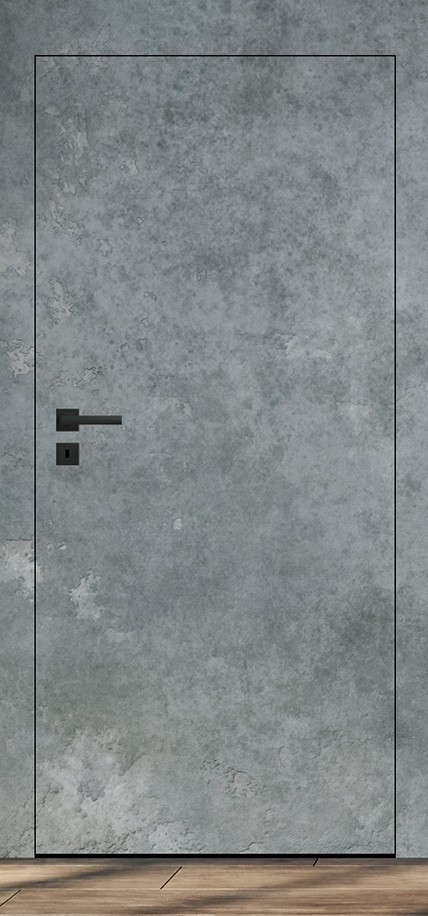

HARMONY INVEST PRO

Entrance internal doors intended for rooms in public
buildings including offices, hotels, etc.

• solid construction – wooden rail and stile set reinforced
  with steel bars
• aluminium frame, reinforced, allowing to to create
  a single surface of the wall panel with the door leaf
•  abundant colours with the ECO TOP, LAMINATED CPL,
  LAMISTONE CPL, SILKSTONE, UNI MAT PLUS, VENEERED
  and PAINTED surface finish
• door leaf equipped with a drop down seal
• Rw = 37dB acoustic insulation
• rated leaf thickness: 50 mm

PARAMETERS:

• door width opened outwards ODZP „60” - „90”
  4 mechanical class according to PN-EN 1192:2001
• door width opened outwards ODZP „90 plus” - „110”
  3 mechanical class according to PN-EN 1192:2001
• door width opened inwards ODWP „60” - „110”
  3 mechanical class according to PN-EN 1192:2001
• acoustic insulation: Rw= 37 dB, D1-35, D2-30

STANDARD:

• magnetic mortise lock, key-operated (spacing: 90 mm), for a cylinder
  (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
• opened outwards: SIMONSWERK TECTUS TE 541 3D FVZ type
  concealed hinges, 3D adjustable (”60”- ”90” – 2 pcs ,”100”- ”110” – 3 pcs)
• opened inwards: SIMONSWERK TECTUS TE 240 3D type concealed
  hinges, 3D adjustable (”60”- ” „110” – 3 pcs)
• door higher than standard - 3 pcs
• drop down sea

ADDITIONAL (available at an extra charge):

• "100" width
• "110" width
• mortise sash lock
• higher door - 2150/2140
• higher door - 2250/2240
• higher door - 2350/2340
• higher door - 2450/2440
